Introduction to 3D BIM Modeling
3D BIM Modeling, or Building Information Modeling in three dimensions, is a process that ties digital representations of a building geometry to data-rich information about its components, systems, and lifecycle. While traditional 3D design focuses mainly on geometry and visualization, a 3D BIM model has information-rich data embedded in it that facilitates project collaboration, decision-making, and project delivery.
In construction, 3D BIM Modeling has become necessary for architects, engineers, contractors, and owners. 3D BIM Modeling allows teams to more accurately plan, design, and manage projects, therefore minimizing costly errors, and building the culture of collaboration on these projects among all stakeholders.
Key Benefits of 3D BIM Modeling in Construction Projects
1. Better Design Quality
BIM improves design quality by providing complex 3D visualization and enabling real-time stakeholder engagement. This detailed comprehension enables careful design analysis and improvement before starting construction. A McGraw-Hill Construction study states that around 70% of BIM users have seen an improvement in quality of their projects’ designs.
For example, Shanghai Tower project’s worldwide team collaborated efficiently and made necessary revisions, thanks to use of BIM to construct complex 3D models. This led to completion of high-quality design on schedule and under budget.
2. Improved Teamwork & Interaction
BIM method makes teamwork and simultaneous work on a single file possible, improving efficiency and saving time. To prevent miscommunication, role-based access guarantees that team members view only data related to their duties. Enhancing communication overall, this collective digital area allows smooth data sharing and real-time monitoring across many applications and disciplines.
One such example is Crossrail project in London, where more than 10,000 people from different teams were involved in making one of Europe’s largest infrastructure projects, more than 100 kilometers. The use of BIM in project allowed persons from 30 different organizations and units to work on a single model and share real-time information, improving efficiency of project. It also reduced design errors which improved project coordination.
3. Better Project Management
BIM includes all information of a project being constructed, from details of exterior and interior elements to different disciplines like ASMEPF and other connections of building. It also includes operational information, scheduling, time & cost of project. These detailed descriptions help contractors better plan construction and finally better project management.
One such example is renovation of Denver International Airport, where with help of BIM, a better logistics and scheduling plan was made, resulting in a 10% reduction in construction and renovation of Airport.
4. Real-time Monitoring
The coordinated model is monitored in real-time during development, enabling timely recommendations and adjustments. It also updates changes made in real-time to keep others working on up-to-date models. This increases the efficiency of project, enhances safety, better project management & keeps project on schedule. The One World Trade Center’s real-time monitoring helped keep project on schedule and error-free.
5. Enhanced Visualization
Better visualization through BIM model helps you get a realistic tour of structure being made. As BIM is a detailed 3D model of structure, it helps to understand every single detail, from ASMEPF connections to material being used, so that detailed model is seen, understood & modified before actual construction begins. It also allows a virtual tour of structure, giving more visual clarity to client.
An example of this is renovation of iconic Sydney Opera House. Detailed visual representation of complex structure helped the team to work efficiently and plan renovation process of Opera House.
6. Hazard & Risk Management
BIM, apart from giving details about structure, cost, project time estimations & more, gives you detailed information on potential hazards and risks at construction sites before it begins. It also informs through a thorough simulation of the conflicts, making everyone aware of the risks involved and how they can be overcome before the construction.
An example of such potential hazard detection and resolution was renovation of Heathrow Airport. Redevelopment of project included detection of hazards, according to condition of area, and then working on it, so that redevelopment could take place
7. Cost & Time Efficient
Improving teamwork, and reducing amount of errors in design, ultimately leads to lesser costs invested in fixing errors during construction. BIM allows early detection of clashes in different systems, which helps avoid costly on-site changes. Also, the software will enable us to estimate cost and budgeting of project, according to its size and use. It also lets you track project’s real-time money management, keeping things under budget.
8. Energy Saving & Sustainability
Use of BIM allows designers and constructors to know what will be energy use of building and then decide on what can be done to make minimal use of energy from building. This ensures that structure works more efficiently. BIM also helps in optimizing use of materials, which reduces wastage and promotes sustainability.
According to a finding by American Institute of Architects (AIA), a building’s energy usage can be lowered by up to 30% by using BIM at design stage.
9. Competitiveness
Using BIM enhances competitiveness in market, giving better outcomes for design models. BIM allows a streamlined flow of project, getting real-time updates, improving project outcomes & ultimately improving client satisfaction. This increases market value of company providing BIM services and the ones consuming service.
10. Collaboration with New Innovations
BIM can be integrated with new technologies like Artificial Intelligence(AI), Augmented Reality (AR), Virtual Reality (VR) & Internet of Things (IoTs), which potentially increases project’s capabilities. One such technological use with BIM was seen in building of U.S. Bank Stadium by Mortenson Construction. They used BIM with VR, to get a virtual understanding of stadium before it was built. Talking of AI as new trend, more BIM users are integrating AI with methods to get better design models or detailed project information.
3D BIM Modeling Use Cases Across the Building Lifecycle
3D BIM modeling is transforming the entire building lifecycle—from planning to operations. In the planning stage, it enables architects, engineers, and stakeholders to visualize designs, detect clashes, and streamline approvals with accurate 3D representations. During construction, BIM ensures seamless coordination across trades, supports clash detection, and improves safety with 4D sequencing, helping projects stay on schedule and within budget.
Beyond construction, BIM adds value in cost control and facility management. With 5D integration, it provides real-time cost tracking and precise quantity take-offs, reducing waste and financial risks. Once operational, BIM evolves into a digital twin, empowering facility managers with data on assets, maintenance, and energy performance. The result is smarter planning, efficient construction, and sustainable building operations—delivering long-term value across the lifecycle.
3D BIM in Planning & Design
The first part of a building’s lifecycle encompasses the design of the building, and then the development of a plan for construction. A good BIM can shine in this stage by enabling trades to work together in a common data environment and optimize building plans before construction begins.
BIM Coordination and Clash Detection

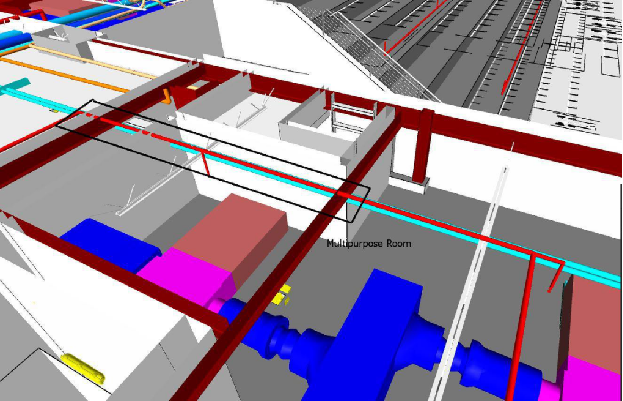

These two terms are sometimes used interchangeably. They refer to the use of a BIM model to coordinate work between the MEP engineering, structural engineering, and architectural design teams during the design process.
To perform coordination, a team brings the different individual models – prefab, landscape, electrical, etc – into a federated model. This gives the team a holistic view of the building design elements that can highlight clashes, like a run of pipe that “breaks” through the floor. By using this model to look for these problems in advance, a team can fix them with a quick redesign rather than reacting in the field.
Scheduling
As you know, a BIM model includes a combination of spatial and attribute data. But it can also include scheduling data. A specific building element might include data to indicate when it will be constructed, how long it would need to dry or cure after installation, where it sits in a complex construction sequence, and so on.

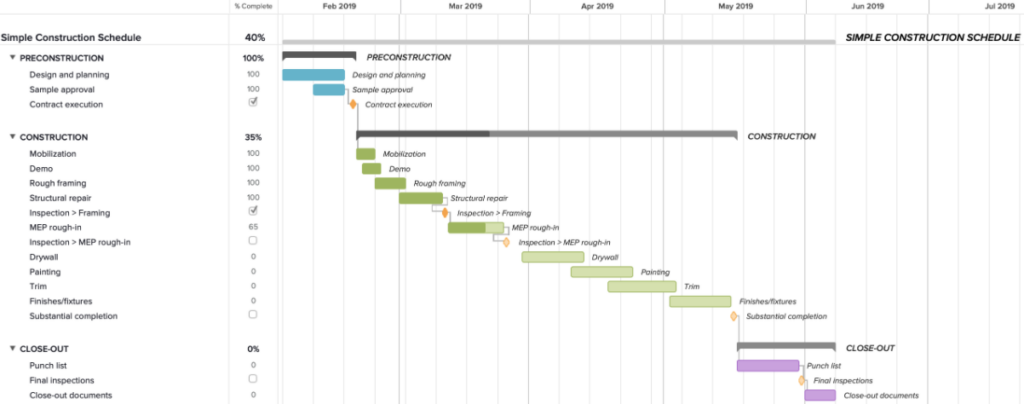

This adds the dimension of time to the three spatial dimensions, which is why this process is often called 4D BIM. It can be used to create visualizations that show how the project will look at any stage in the building process. It can also be used to simulate different designs and see how they fit in the context of the project.
A 4D model’s primary use is the coordination of work or ensuring that construction will proceed in a logical and efficient way.
Cost Analysis
A team can also add cost information in the form of labor estimates, material prices, and so on. This creates a 5D BIM model, which offers another level of context for planning and optimizing the construction process.
3D BIM in Construction
A BIM model aids in the construction stage by making a wealth of information available (and easily understandable) to all stakeholders. It can be used for a variety of applications, from new construction to renovation work.
Information Management
Design teams can collect important files in a common data environment and add as much metadata to the BIM model as needed. This ensures that information is always easy to find, and easy to consult for workers in the field – bridging the gap between the design and construction process. It also reduces the complex challenges of file control, which in turn speeds up the QA/QC process.
Prefabrication
A project team can use the BIM model as a reference for prefabricating elements, which entails building them offsite at a lower price. The model gives the project team all the spatial and
3D BIM for Cost Management
Field Consultation
A BIM model can also ensure that all members of the project team have the latest data. By using a rugged tablet in the field, a worker can consult the model before performing work—rather than looking to an outdated 2D plan that was printed off a week earlier. In the future, this task may even be performed using AR headsets.
scheduling information they need to prefab elements that don’t clash with existing elements.
Project Team Communication
A BIM model offers a common data environment, and a single source of truth, that includes all information about the construction project. This makes it ideal for communication on site. For instance, a project team could use it as a reference during weekly meetings to ensure that everyone is on the same page. This helps a project make decisions faster, prevent expensive mistakes, and minimize rework.
Public and Client Communication
Because a BIM model includes a holistic, easy-to-understand picture of all the elements of a construction job, they can be powerful tools for communication with outside stakeholders.
For instance, a project team could create animations that demonstrate project progress at different stages. They could include traffic closures and other important public information, or a variety of other information as needed.
This gives the public or the client an easy way to understand a complex project—without needing to read complex flow charts or look at detailed, confusing spreadsheets. For extra impact, a project team could load select parts of the model into a VR presentation for interactive exploration.
3D BIM in Facility Management
It may be a surprise, but the operations and maintenance phase of a building lifecycle is the most expensive by far. Some estimates put 70% of the building’s total costs during this phase. A good, up-to-date and precise BIM model can go a long way toward reducing these costs.
Facilities Management
A BIM model can have a lot of value in FM. The model includes valuable and useful information about a variety of building elements and systems. A maintenance worker or owner-operator could use it to find information about the location of specific machines, the number of doors on a specific floor, which kind of lightbulb a lamp uses, positioning of windows, and so on.
By keeping the model up to date, a facilities team can ensure that they have a reference for applications ranging from space planning, reduction of energy costs, and planning of routine maintenance.
Digital Twin Generation
A BIM model can also offer the basis for generating a digital twin, or an intelligent model that includes real-time operational information for the asset. Owner operators can install smart sensors and IoT devices in the asset, and connect them to the model. This enables them to track data related to building usage, movement of occupants, temperature, and so on.
A digital twin has too many applications to cover here. But to give you an idea of their power, an owner operator could use a digital twin to plan building improvements and then simulate their effect on a variety of building parameters, like energy usage or foot traffic. Or, they could use this data to predict maintenance needs and plan their budget and labor accordingly.
3D BIM in Demolition
You might not think that a BIM model would be useful when tearing a building down, but you’d be wrong.
Intelligent Demolition
These models offer all the information a team needs to optimize demolition much as they would the construction process. They can use the model to quantify the surface area and volume of different materials, and then ensure their recovery by planning the demolition process accordingly.
Understanding LOD (Level of Development) in 3D BIM Modeling
Level of Development (LOD) specification allows professionals in the industry to articulate how an element’s geometry and associated information has evolved throughout the entire process. It signifies the degree to which different members of the team can rely on information associated with an element.
The LOD specification helps designers define the inherent characteristics of the elements in a model at different stages of development. The clarity in illustration gives depth to a model, signifying how much and at which level someone should rely on a model’s element.
Using LOD, designers and engineers can communicate with other professionals who will be using the model further about the usability and limitations of a model. LOD specifications were designed to standardize the use of the LOD framework and use it as an efficient and collaborative communication tool.
- LOD 100: Conceptual design (mass models).
- LOD 200: Approximate geometry with basic elements.
- LOD 300: Accurate geometry, suitable for coordination.
- LOD 400: Fabrication-level detail, ready for construction.
- LOD 500: As-built model, fully aligned with real-world conditions.
Precise LOD definitions ensure teams know the accuracy and scope of the information they are working with, avoiding misinterpretation and rework.
Popular 3D BIM Modeling Software Tools
Several 3D BIM software platforms are widely used in the industry:
- Autodesk Revit: Leading tool for architectural, structural, and MEP design.
- Navisworks: Specialized for clash detection and construction coordination.
- Graphisoft ArchiCAD: Popular with architects for design efficiency.
- Tekla Structures: Strong for structural Modeling and detailing.
- Bentley Systems: Ideal for infrastructure projects.
- Autodesk InfraWorks: Useful for integrating GIS and large-scale planning.
Each software supports a specific stage of the 3D BIM workflow, from design to construction and facility management.
Future Trends in 3D BIM Modeling
Digital twins
The main idea behind BIM relies on the concept of the digital twin: the ability to create a project model that represents the structure before the structure is even built. This approach can greatly assist with presentation and visualization options for the client side of the business, and it is also a massively advantageous technology for the construction process itself.
Many different BIM technologies and methods rely on digital twin technology to do their jobs, including simulation and predictions, which is what a lot of the advantages of BIM can be boiled down to. The existence of an incredibly accurate scalable model of a project offers a massive number of advantages, such as improved decision-making, enhanced performance, a reduction of the amount of rework, and many other examples.
Cloud-based BIM
A cloud-centric infrastructure is another important aspect of the BIM approach. It is a deceptively simple concept with a massive number of advantages. Cloud computing, or cloud storage, might seem relatively simple at first, since both can be described as storing or processing information using remote servers instead of local storage.
However, the sheer number of advantages this brings to any construction project is tremendous. First, cloud storage can offer extremely high levels of accessibility, eliminating the necessity of being proverbially tied down to your workstation to do any kind of construction-related work.
Second, cloud data sharing and cloud processing allow for an unprecedented level of communication and collaboration, since both can be done using the same platform (with BIM being the platform in most cases, although there are also plenty of examples in which cloud storage platforms are used outside of BIM’s set of use cases).
Interoperability
One of the most significant issues of BIM is its problematic approach to data sharing. While the methodology itself allows seamless and convenient data sharing, the nature of the software market has spawned dozens of different proprietary file formats with extremely limited exporting and transformation capabilities.
Since data sharing is supposed to be a “two-way street,” this market situation makes it difficult for stakeholders to share information in certain situations. Interoperability should be the solution to this issue, as the existence of a data format that different platforms can work with and support will greatly simplify the information exchange process.
Modular construction and prefabrication
The pursuit of safe and cost-efficient structures that can be built with minimal effort and time investment is what brought the construction industry to modular construction and prefabrication, which are far more reliable and effective in the context of BIM-centric construction processes.
Prefabrication is an approach to construction that relies on manufacturing large construction elements off-site and their subsequent assembly after they are delivered to the construction site. The minimal effort required to assemble prefabricated elements is the most significant difference between prefabrication and the traditional approach to construction.
Modular construction, on the other hand, is the creation of standardized complex construction elements in “modules” to be used with barely any modification on-site. Some of the most prominent examples of modular construction are factory-fitted bathrooms, dorm rooms, facade elements, and practically everything else that needs to be replicated multiple times in the same building with minimal deviation.
Laser scanning
Laser scanning is a near-perfect match for BIM in the construction industry. The former can acquire extremely accurate on-site information, while the latter can receive and interpret it, showcasing the visual representation of the laser scanner’s results in a BIM model. The actual process of “Scan to BIM” is relatively simple: laser scanners are set up on-site to perform the scan, converting information using point-cloud technology into something that BIM can interpret and add to the existing project model.
It can greatly reduce the reliance on manual work when it comes to monitoring the status of the project (since the scanning process is relatively fast) while also reducing the number of errors caused by the human factor. The increase in scanner performance also contributes to better project costs, faster project completion, and many other advantages.
Drone Use
Laser scanning is often associated with another noticeable trend in the BIM field: the use of on-site drones. Both methods gather real-time data for multiple purposes, so it is not uncommon for laser scanning and drones to be treated as a single factor.
As standalone units, drones can also gather accurate, real-time information from construction sites. They are even more convenient than laser scanning to a certain degree, although they are not very accurate in comparison. Drones can also be used to perform real-time monitoring, communication between the construction site and the office, and even some more case-specific tasks, such as checking the locations of potential clashes or issues.
Improved sustainability
Sustainability as a whole is a very complicated topic when it comes to the construction process, covering energy modeling, green architecture, and several other specific tools or processes. The idea behind sustainable construction revolves around performing a complex analysis of a project model that is already complete and has passed the load-testing stage.
Energy analysis evaluates many different parameters, such as CO2 emissions, utility bills, indoor environmental quality, energy consumption, and more. The analysis also considers how the future building will work with different green energy options, such as wind turbines, solar energy panels, photovoltaics, and so on. The primary goal of sustainable and “green” construction is to reduce the negative impact of a building on the surrounding environment, and it has become so popular in recent years that some “green” methods are now government-mandated in certain countries.
Artificial intelligence
The recent rise in artificial intelligence (AI) can be mainly attributed to the power of large language models (LLMs). While their primary use cases still revolve around question-and-answer queries, AI as a whole can be used for many other, less customer-oriented purposes, such as data analysis.
Information is the bread and butter of BIM, and many of its capabilities revolve around data analysis and various suggestions based on that data. The introduction of AI into the field significantly improves both of these core processes, offering faster and more detailed analysis of information while also being capable of providing far more detailed and thorough insights and suggestions for object placement, element modification, and other construction parameters.
Internet of things
The concept of the Internet of things (IoT) involves an interconnected network of various devices that can connect to one another and share information in different forms. The definition works for the construction industry, as well, with the addition of industry-specific use cases. IoT devices such as sensors can provide continuous monitoring capabilities for on-site structures while also being capable of automating repair and maintenance tasks and even monitoring or controlling various building systems.
Information-gathering processes like these also assist BIM in all of its base capabilities, offering more information to work with and thus improving performance, reducing the possibility of errors or clashes, and so on. The process of gathering information during construction can be used for monitoring purposes, while post-construction, the same process is a valuable source of information for manufacturers when it comes to improving their products based on customer feedback and long-term performance.
Virtual reality
Both virtual reality (VR) and augmented reality (AR) are some of the best-known elements of BIM software focused on clash detection and project review, since they offer a completely new approach to a process that has been performed manually for decades now. Not only can VR and AR hardware offer a detailed overview of the project as a whole, they can also offer an unprecedented level of quality and even a certain degree of interaction, providing users with a completely new experience.
At the same time, virtual reality can be used as a great showcase of the state of the project for the client at different phases of project realization. It also simplifies feedback gathering, reduces the number of obvious potential errors, and improves the overall quality of the project with a new level of detail for specific project details.
3D printing
3D printing is something of a controversial topic in the field of construction, although that is not very surprising considering how conservative the construction industry tends to be. 3D printing is a process of generating real-life 3D shapes by using sequential material layering techniques performed by pre-programmed computer algorithms and dedicated hardware. Some of the most common use cases for 3D printing in the industry so far are prototyping and digital model creation.
Conclusion
3D BIM Modelling has emerged to be a significant part of construction allowing the industry to bridge the gap from design intent to physical execution. It provides not just geometry, but offers much more, bringing together geometry and all the data in one clear and collaborative tool. It has the potential to limit mistakes, support cost and schedule control, facilitate collaboration with stakeholders, and thereby extend value into facility management and beyond. It will continue to augment our industry from early design simulations and what we proudly call digital twins with IoT to having BIM change the way we think about buildings for their lifetime.
For architects, engineers, contractors, and owners - a successful 3D BIM workflow, providing stronger processes for the communication of design intent, is an important consideration in maintaining competitiveness. If BIM has never been important inside your organization - it is time to pay attention. With increasingly sophisticated 3D BIM software tools coming down the pipeline combined with new technology like AI and AR/VR, the future of the construction is anticipated to be potentially more intelligent, integrated, and sustainable than imagined.
FAQs
Why is 3D BIM Modeling becoming essential in modern construction?
Because it combines geometry with data, enabling better visualization, collaboration, cost control, and lifecycle management.
How does 3D BIM Modeling improve project collaboration?
By centralizing information in one shared model, reducing communication gaps between architects, engineers, and contractors.
Can 3D BIM Modeling reduce construction errors?
Yes. Clash detection and coordination significantly reduce errors before construction begins, minimizing rework.
What are the main challenges in adopting 3D BIM Modeling?
Challenges include high initial investment, training needs, and ensuring interoperability between different software platforms.
How is 3D BIM Modeling used in infrastructure projects?
It supports road, rail, and bridge projects by enabling accurate planning, clash detection, and asset management.
Is 3D BIM Modeling compatible with prefabrication and modular construction?
Absolutely. BIM supports fabrication-level detailing (LOD 400) and allows precise coordination for prefabricated components.
